Replacement of Whole Swing Gate Motor System
Adhoc & Maintenance
Site Name
Jade Mansion
Photo Gallery
7 photos
Issue Reported
The existing swing gate motor system at Jade Mansion had failed and the whole motor system required replacement to restore reliable automated gate operation.
Site Findings
On-site inspection confirmed the swing gate motor system was faulty beyond repair. Concrete pillar mounting and junction box wiring were assessed for the new motor installation.
Job Scope
- Remove existing swing gate motor system
- Supply new swing gate motor and arm assembly
- Fabricate and weld mounting components as required
- Install and align new motor arm to gate
- Terminate electrical wiring at junction box
- Test gate open/close operation and safety functions
Work Performed
- Removed the faulty swing gate motor system

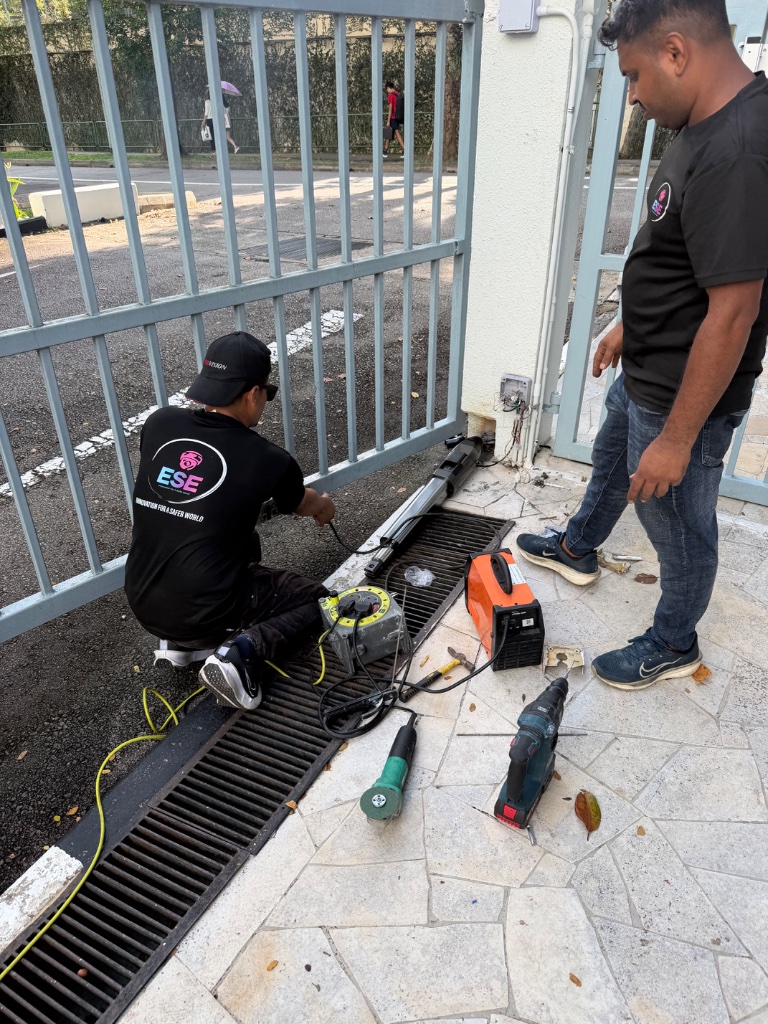

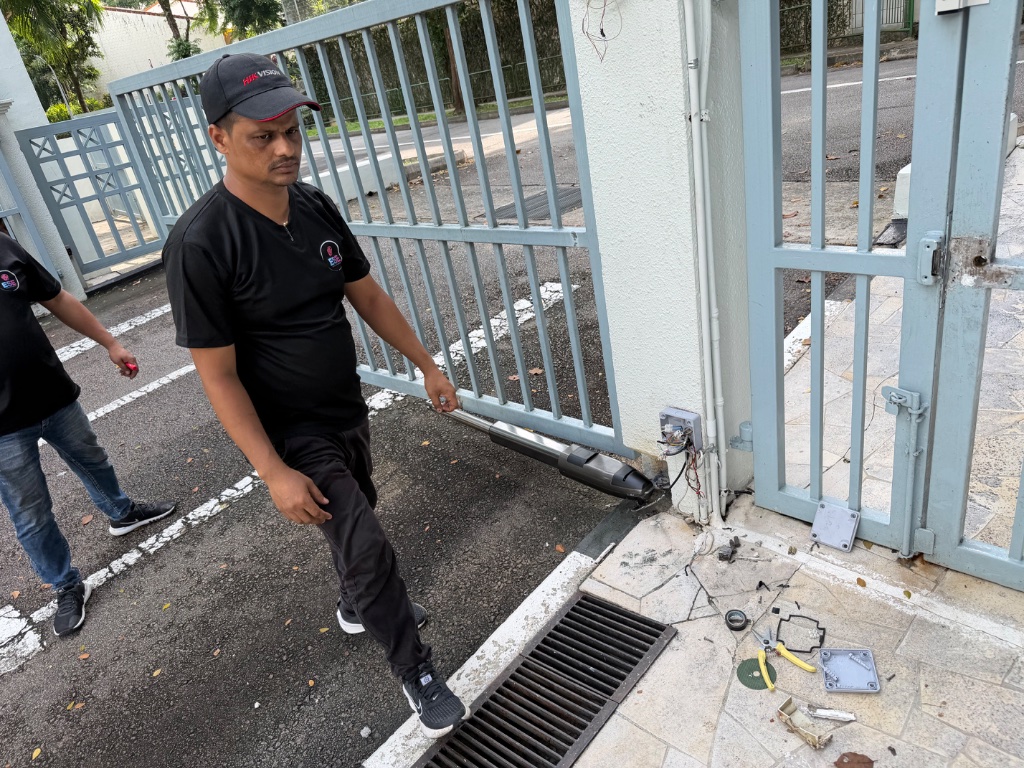

- Supplied and installed a new swing gate motor and arm

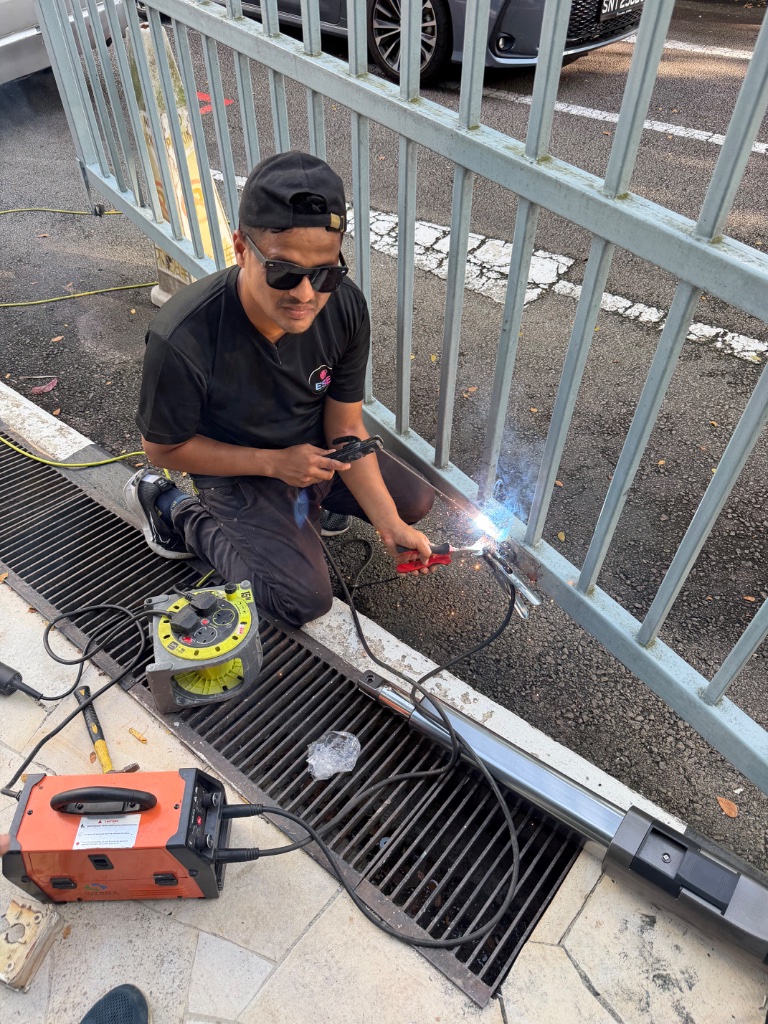

- Carried out on-site welding and fabrication of mounting components

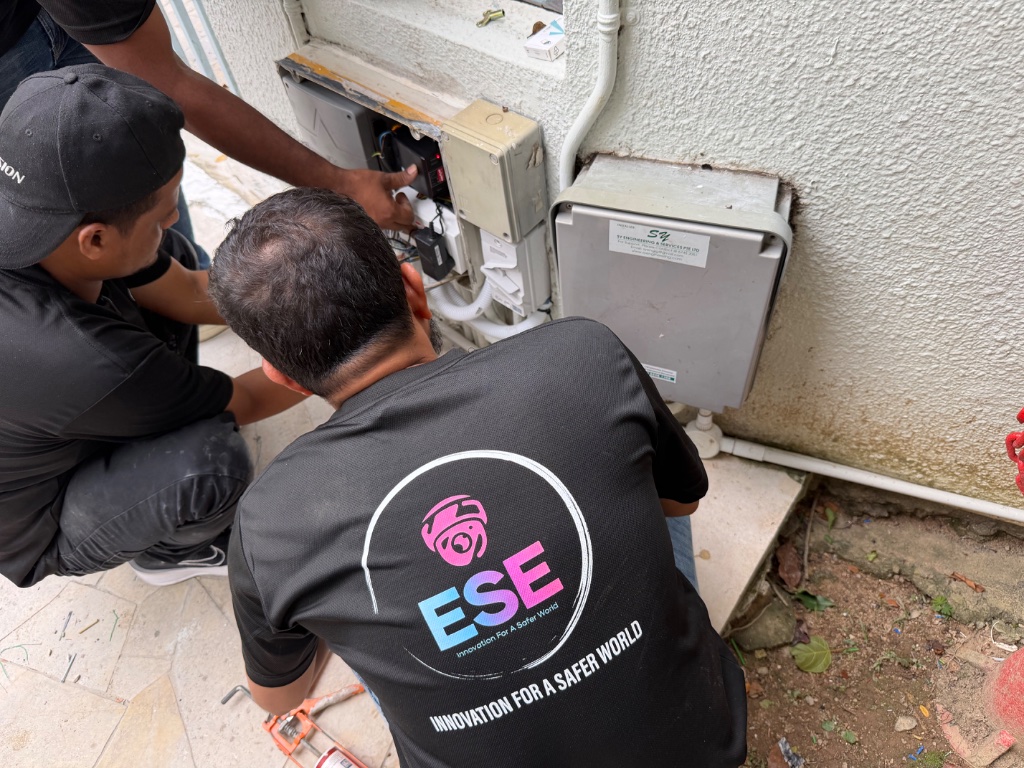

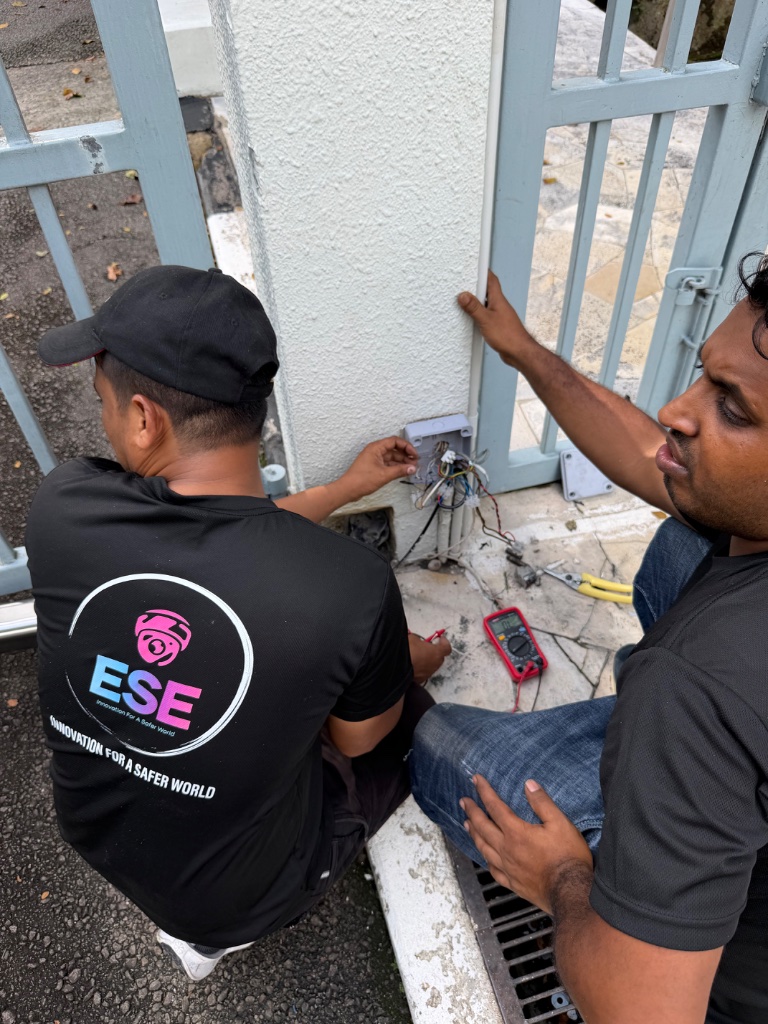

- Terminated electrical connections at the pillar junction box
- Conducted operational and safety testing of the gate
Materials Replaced
- Swing Gate Motor (whole system)
- Motor Arm Assembly
- Junction Box Wiring Components
Result

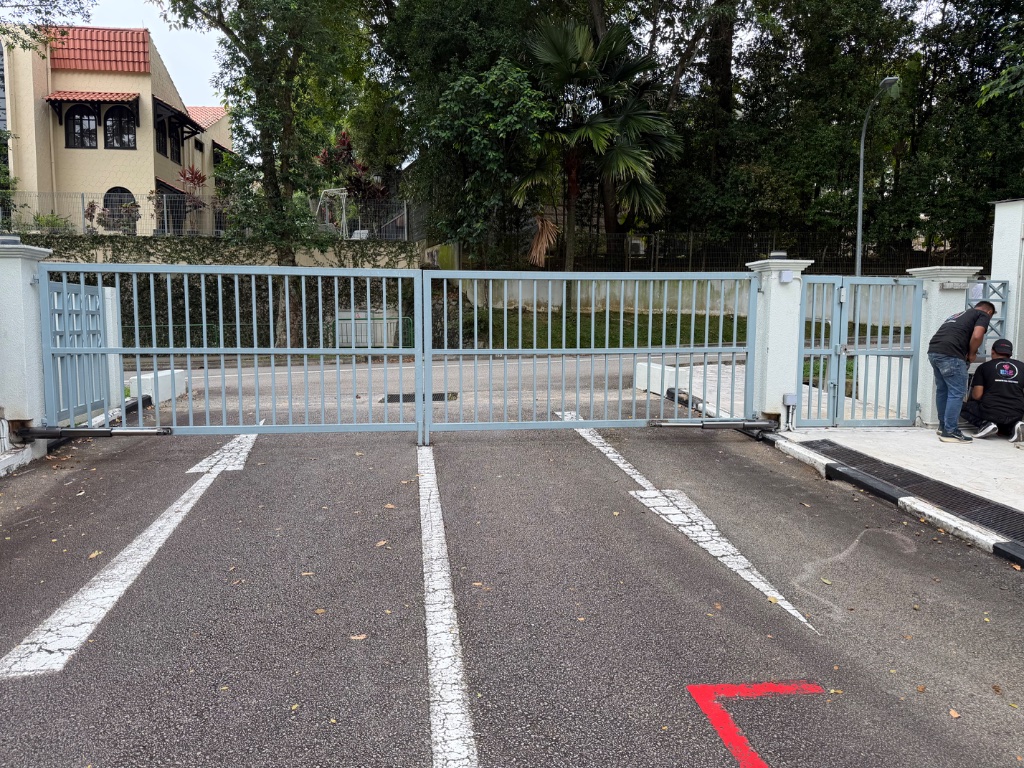

The whole swing gate motor system was successfully replaced. The gate now operates smoothly under automated control with verified safety functions.
Recommendation
Schedule regular preventive maintenance for the swing gate motor, arm, and moving components to extend system lifespan and prevent unexpected failures.
Technician Notes
New swing gate motor system installed, wired, and tested. Welding and fabrication completed on site. Operation verified with QC check.
